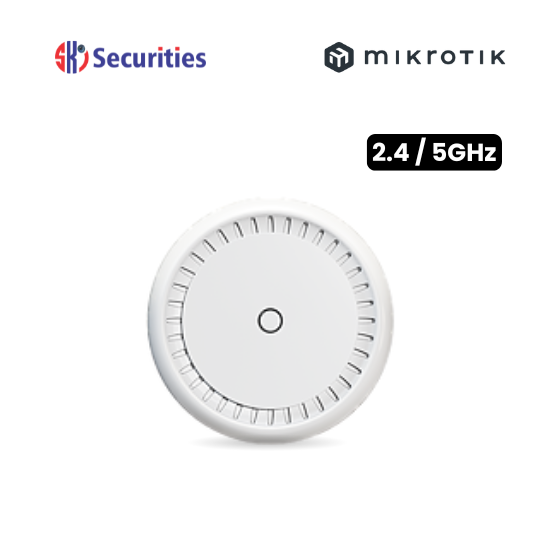

cAP XL ac

The ultimate ceiling access point—now more powerful than ever! Our bestselling cAP returns with enhanced performance and an upgraded high-gain antenna that delivers up to double the coverage area compared to previous models.

Specifications

Model: RBcAPGi-5acD2nD-XL
Architecture: ARM 32-bit
Processor: Qualcomm IPQ-4018, Quad-Core
Clock Speed: 488–896 MHz (auto-adjusting)
Switch Chip: IPQ-4018
Dimensions: 191 × 42 mm
Operating System: RouterOS
License Level: 4
Memory (RAM): 128 MB
Storage Capacity: 16 MB (FLASH)
MTBF: Approximately 100,000 hours at 25°C
Operating Temperature Range: -40°C to +70°C
IPsec Hardware Encryption: Supported

Wireless Performance

2.4 GHz Band

• Maximum Data Rate: 300 Mbps
• Spatial Streams: 2
• Supported Standards: 802.11b/g/n (Wi-Fi 4)
• Antenna Gain: 6 dBi
• Chipset: IPQ-4018

5 GHz Band

• Maximum Data Rate: 867 Mbps
• Spatial Streams: 2
• Supported Standards: 802.11a/n/ac (Wi-Fi 5)
• Antenna Gain: 5.5 dBi
• Chipset: IPQ-4018

Total Wireless Speed: AC1200

Ethernet Connectivity

• Gigabit Ethernet Ports: 2 × 10/100/1000 Mbps
• PoE-Out Supported on: 1 Port

Powering

• Power Input: 1 × PoE-IN
• Input Voltage Range: 18–57 V
• Maximum Power Consumption: 24 W
• Power Consumption (without attachments): 11 W
• PoE Standard: 802.3af/at compliant
• Cooling Method: Passive (fanless)

PoE Output

• Output Port: Ether2
• Output Type: Passive PoE (up to 57 V)
• Current Limit (Low Voltage): 500 mA
• Current Limit (High Voltage): 330 mA

Maximum Total Output: 500 mA
