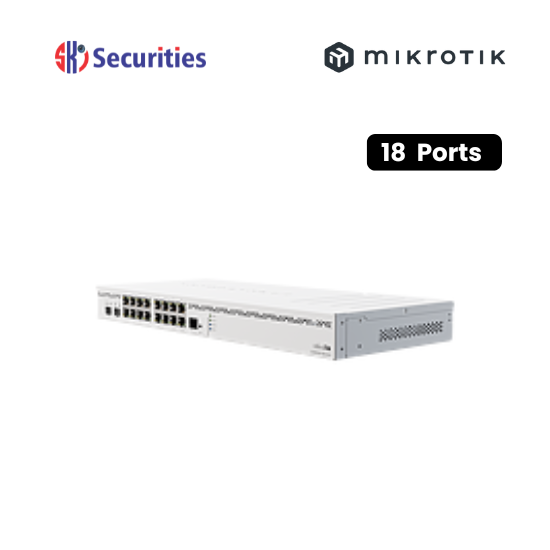

CCR2004-16G-2S+

This high-performance yet cost-effective router outpaces all previous CCR models in single-core speed. It features 16 Gigabit Ethernet ports, dual 10G SFP+ cages, USB connectivity, and active cooling, delivering the best single-core and overall performance per watt in the entire CCR series.

Specifications

Model: CCR2004-16G-2S+
Architecture: ARM 64-bit
Processor: Annapurna Labs AL32400, Quad-Core
CPU Frequency: 1.7 GHz
Switch Chip: 88E6191X
Dimensions: 443 × 210 × 44 mm
Operating System: RouterOS v7
License Level: 6
Memory (RAM): 4 GB
Storage: 128 MB NAND
MTBF: Approximately 200,000 hours at 25°C
Operating Temperature Range: -20°C to +60°C
IPsec Hardware Acceleration: Supported

Powering

• AC Inputs: 2
• Input Voltage Range: 100–240 V AC
• Power Supply Slots: 2
• Frequency Range: 50–60 Hz
• Maximum Power Consumption: 48 W
• Power Consumption (without attachments): 35 W
• Cooling Type: Active (2 fans)

Ethernet

• Gigabit Ethernet Ports: 16 × 10/100/1000 Mbps

Fiber Connectivity

• SFP+ Ports: 2 × 10G

Peripherals

• Serial Console Port: RJ45
