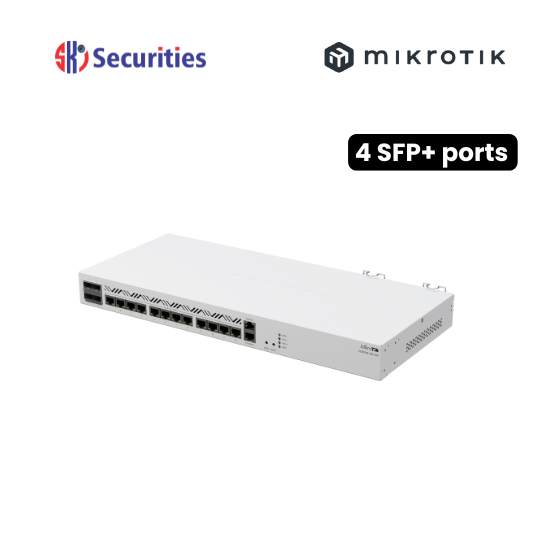

CCR2116-12G-4S+

Eliminate CPU bottlenecks in your 10G networks with this high-performance CCR powered by a 16-core ARM processor. Delivering twice the speed of the previous 36-core CCR and offering up to six times faster BGP performance, it’s built for demanding routing environments — now with an M.2 PCIe slot for enhanced expansion and flexibility.

Specifications

Model: CCR2116-12G-4S+
Architecture: ARM 64-bit
Processor: Annapurna Labs AL73400, 16-Core
CPU Frequency: 2.0 GHz
Switch Chip: 98DX3255
Dimensions: 443 × 199 × 44 mm
Operating System: RouterOS v7
License Level: 6
Memory (RAM): 16 GB
Storage: 128 MB NAND
MTBF: Approximately 200,000 hours at 25°C
Operating Temperature Range: -20°C to +60°C

Powering

• AC Inputs: 2
• Input Voltage Range: 100–240 V AC
• Power Supply Slots: 2
• Frequency Range: 47–63 Hz
• Maximum Power Consumption: 83 W
• Power Consumption (without attachments): 60 W
• Cooling System: Active (4 fans)

Ethernet

• Gigabit Ethernet Ports: 13 × 10/100/1000 Mbps

Fiber Connectivity

• SFP+ Ports: 4 × 10G

Peripherals

• Serial Console Port: RJ45
• 2 Slot: 1
