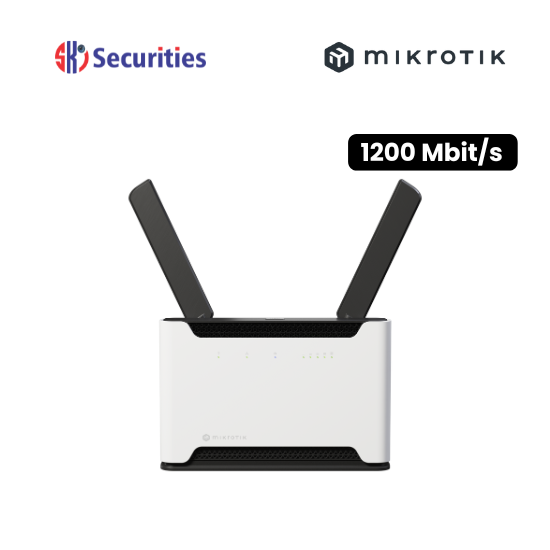

Chateau LTE18 ax

The ultimate home access point just got an upgrade! The Generation 6 version of the Chateau LTE18 delivers significantly faster Wi-Fi, a more powerful CPU, and now comes equipped with 2.5 Gigabit Ethernet for next-level performance and reliability.

Specifications

Model: S53UG+5HaxD2HaxD-TC&EG18-EA
Architecture: ARM 64-bit
Processor: Qualcomm IPQ-6010, Quad-Core
CPU Frequency: Auto (864–1800 MHz)
Switch Chip: IPQ-6010
Dimensions: 240 × 156 × 44 mm
Operating System: RouterOS v7
License Level: 4
Memory (RAM): 1 GB
Storage: 128 MB NAND
MTBF: Approximately 200,000 hours at 25°C
Operating Temperature Range: -40°C to +65°C

Powering

• DC Inputs: 1 (via DC Jack)
• Input Voltage Range: 12–28 V
• Maximum Power Consumption: 19 W
• Power Consumption (without attachments): 16 W
• Cooling Type: Passive

Mobile Connectivity

• 3G Category: R8 (42.2 Mbps Downlink, 11.2 Mbps Uplink)
• 3G Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
• LTE Category: 18 (1.2 Gbps Downlink, 150 Mbps Uplink)
• MIMO (DL): 4×4
• MIMO (UL): 1×1
• LTE FDD Bands: 1, 3, 5, 7, 8, 20, 28
• LTE TDD Bands: 38, 40, 41
• TAC: 86981604

Wireless Performance

2.4 GHz Band

• Maximum Data Rate: 574 Mbps
• Number of Chains: 2
• Supported Standards: 802.11b/g/n/ax (Wi-Fi 6)
• Antenna Gain: 3 dBi
• Chipset: QCN-5022

5 GHz Band

• Maximum Data Rate: 1200 Mbps
• Number of Chains: 2
• Supported Standards: 802.11a/n/ac/ax (Wi-Fi 6)
• Antenna Gain: 6 dBi
• Chipset: QCN-5052

Ethernet Connectivity

• Gigabit Ethernet Ports: 4 × 10/100/1000 Mbps
• 5G Ethernet Port: 1

Peripherals

• SIM Slots: 1 (Micro SIM, integrated modem)
• USB Ports: 1 × Type-A
• USB Power Reset: Supported
• Maximum USB Current: 1 A
